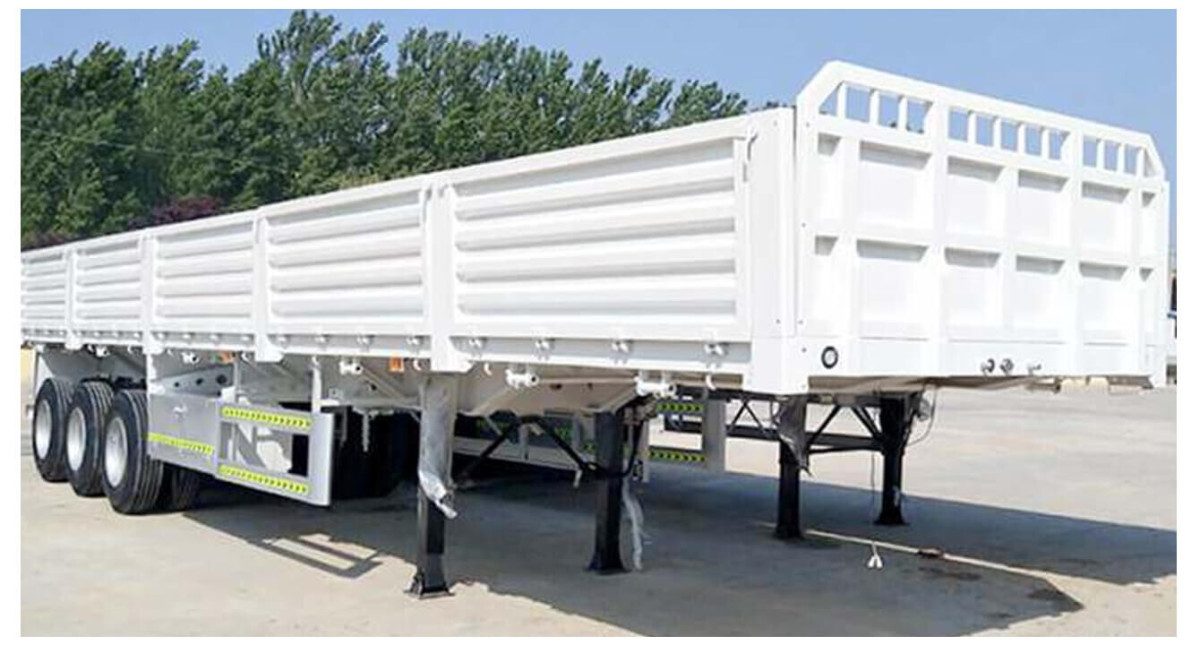

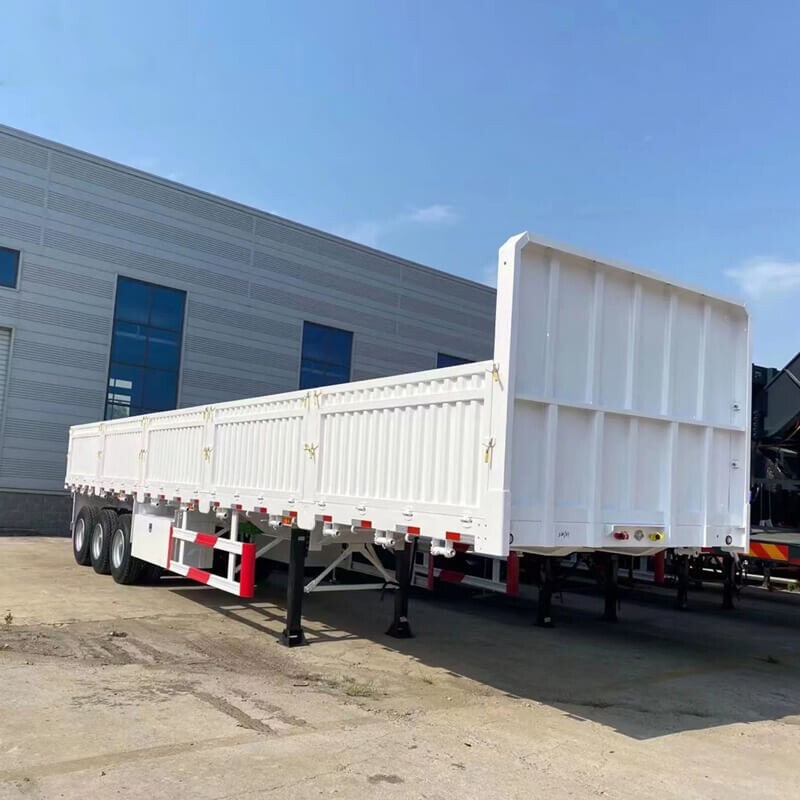

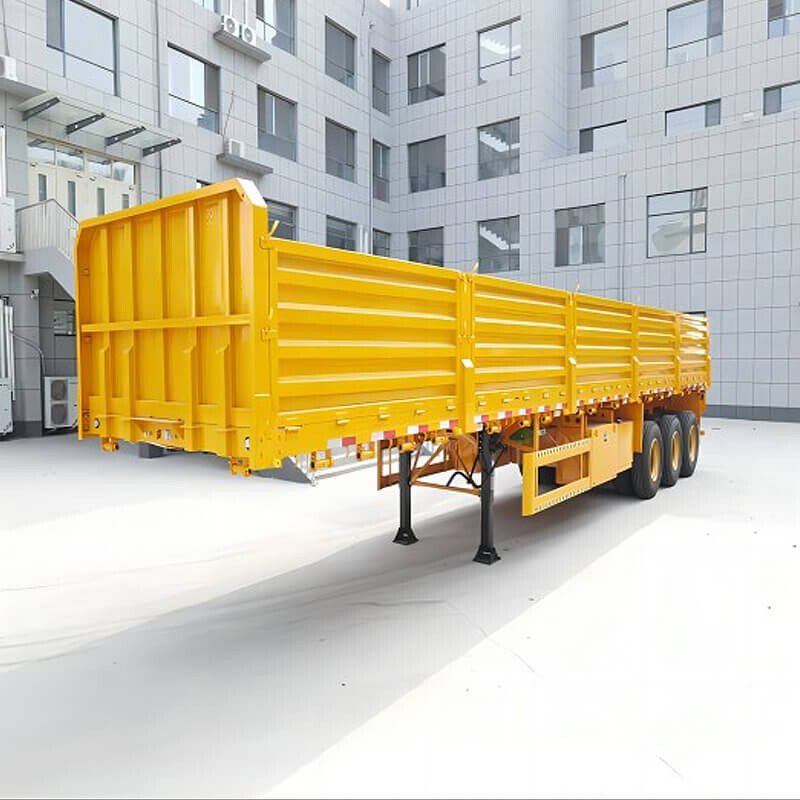

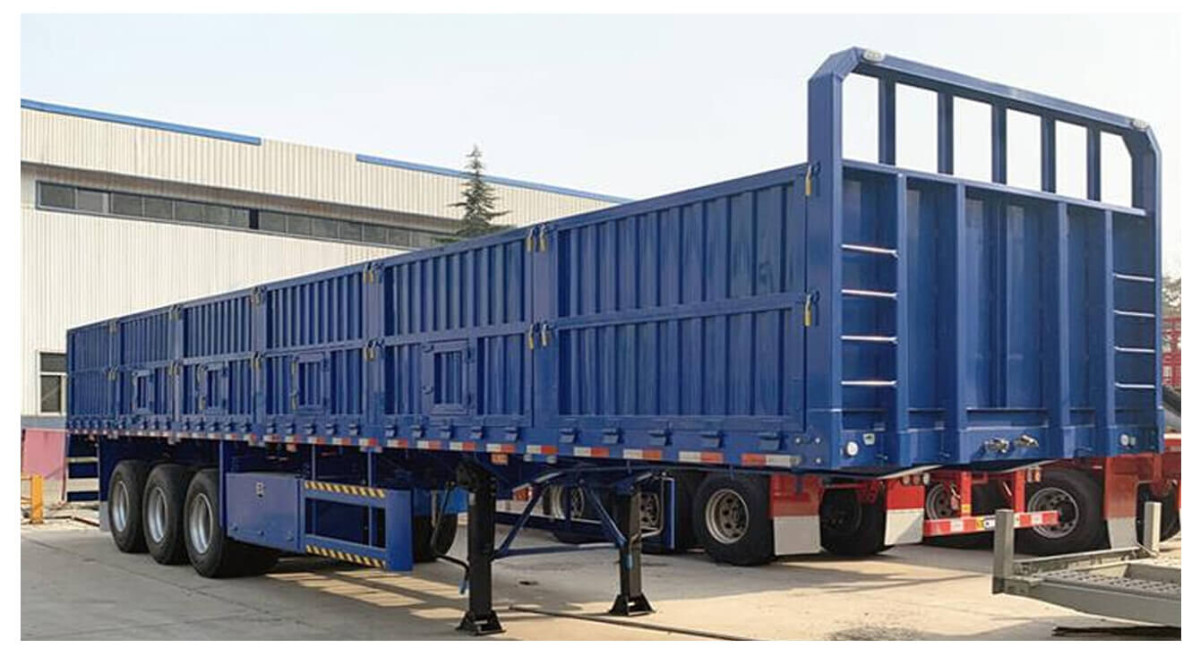

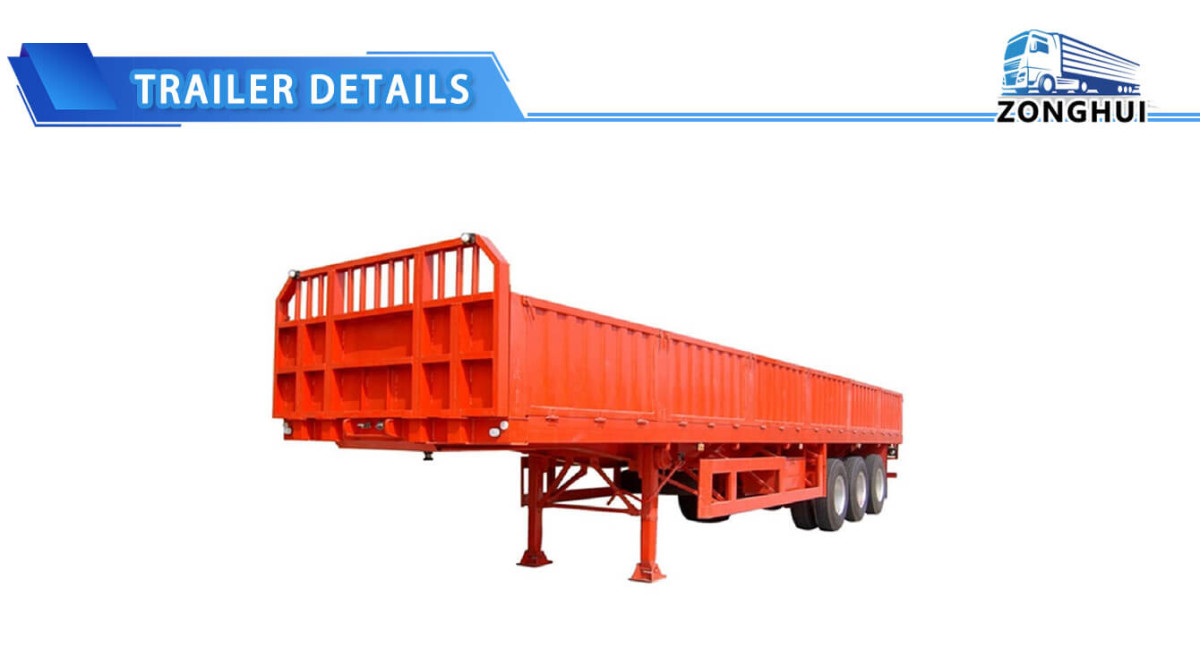

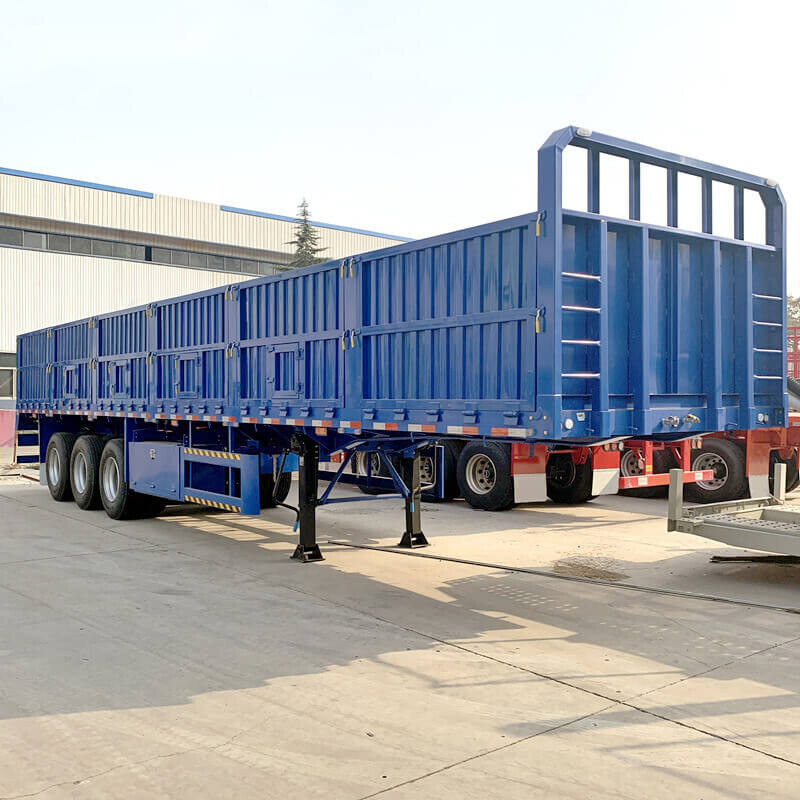

40T Flatbed Trailer With 1200mm Side Wall

The 40T flatbed trailer with 1200mm side wall is a special vehicle suitable for long-distance transportation. The flatbed trailer is designed with side rails and is used to transport containers or bulk cargo such as grain, cement, etc. The side rails can be assembled with 600mm, 800mm, 1000mm, and 1200mm, and the specific height can be customized according to needs.

Semitrailer@zonghuimaterial.com

+86 153 7615 3275

+86 153 7615 3275

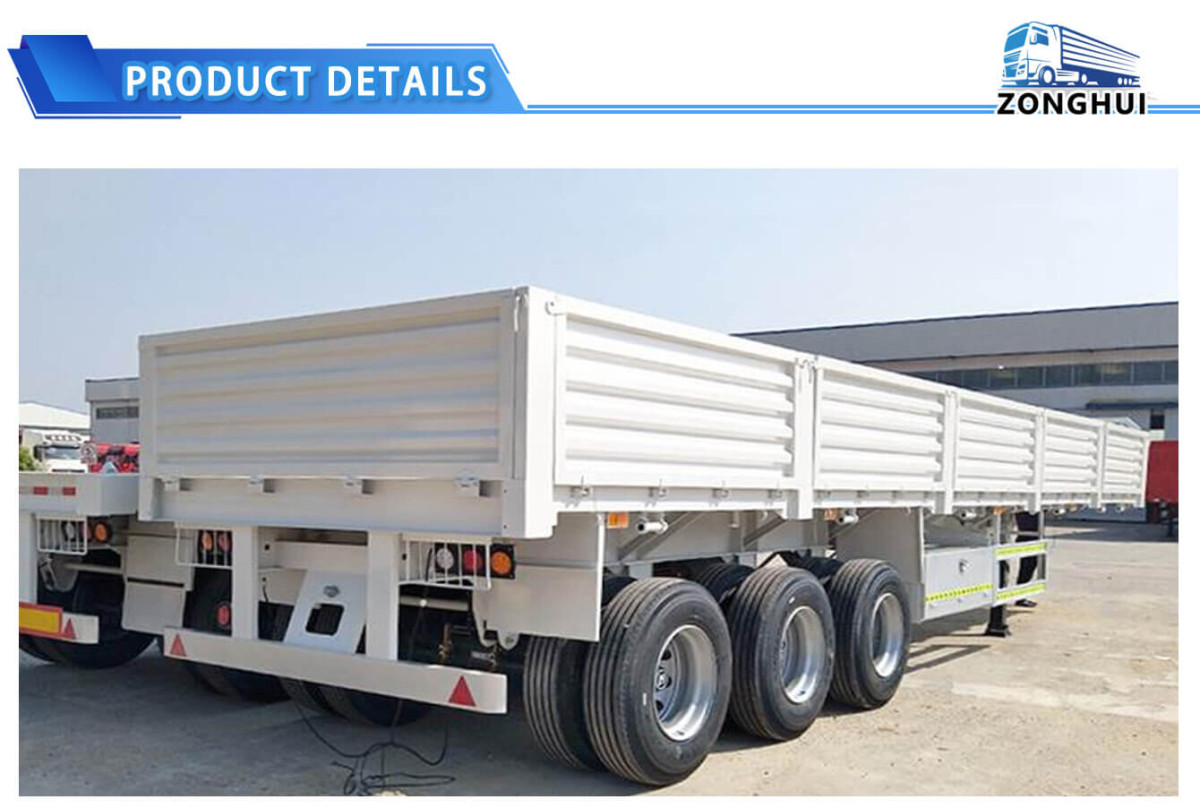

PRODUCT DESCRIPTION

Parameters

Feature	Carry 1X40FT, 1X20FT or 2X20FT container; bulk cargo
Dimension(LWH)	1250025002770mm
Main frame	Heavy duty and extra durability design; Opting for hightensible low carbon alloy Q345B steel; I beam welded byautomotive arc-submerge process
The thickness of floor	3mm
Height of sidewalls	1200mm( Enhance sideboards and open grain doors)
Main frame	Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
No. of axle	3
Payload(kgs)	40000
Tare weight(kgs)	7500
Kingpin	Bolt-in type 3.5” or 2”
Landing gear	Two-speed manual operation 19”
Tire size	Triangle brand 315/80R22.5 (13 sets )
Rim size	9.00*22.5(sets）

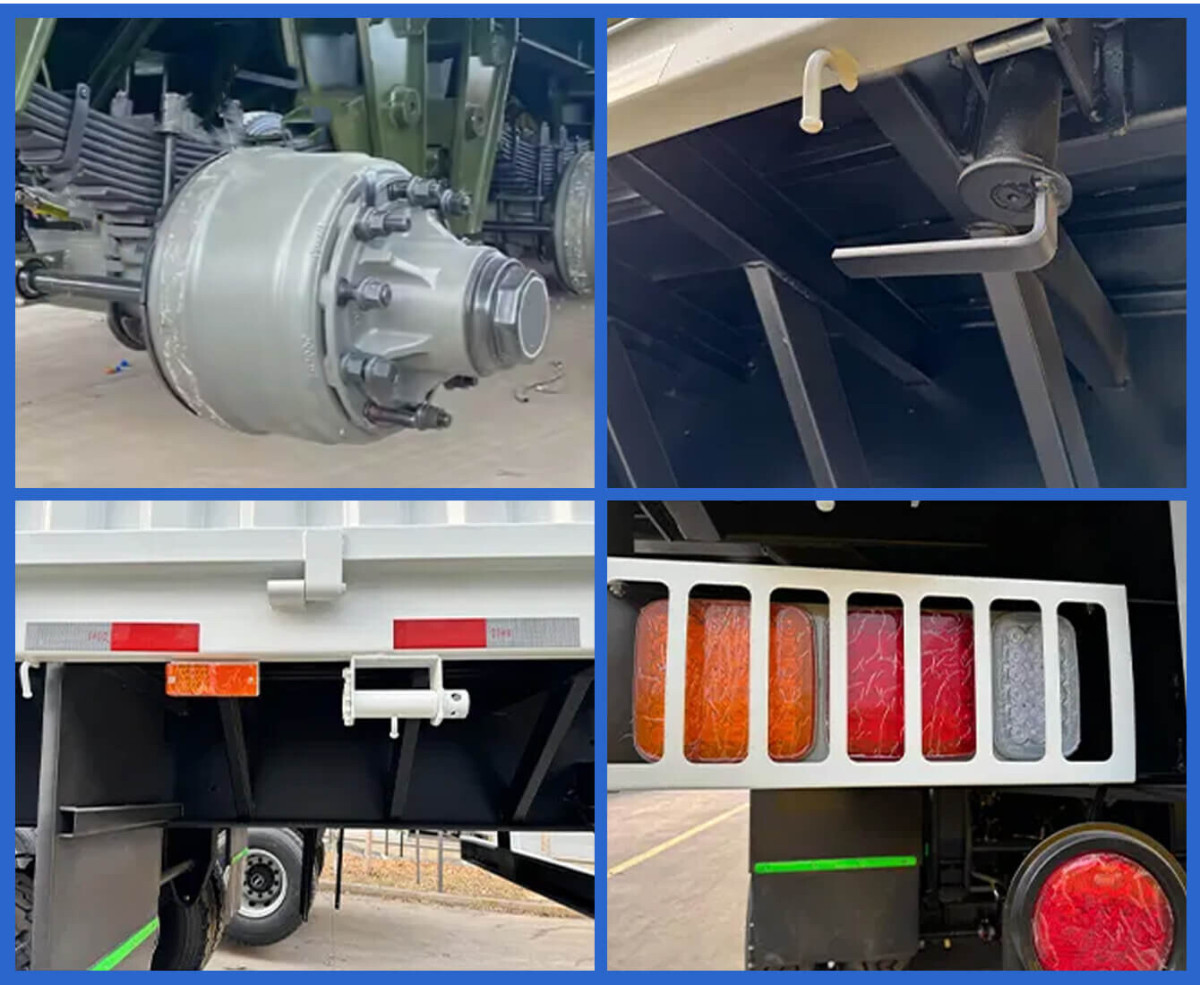

Axle	3 Axle, 13 Tons
Suspension	Spring suspension with 8 leaf springs
Brake system	Dual line with Re- 6 emergency relay valve, T30/30 air chamber, 46L air tank
Electric system	One unit of 24V 7 -pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks	12(for 1x20GP,2X20GP,1X40HQ)
Painting	Two coat of anti-corrosion prime; one coat of finish painting
Color	Optional
Accessory	One tool box; one set of standard tool
