Name: 26000L 3 Axle LCO2 Tanker Semi-Trailer with Vacuum Insulation
SKU: 0



RECOMMEND

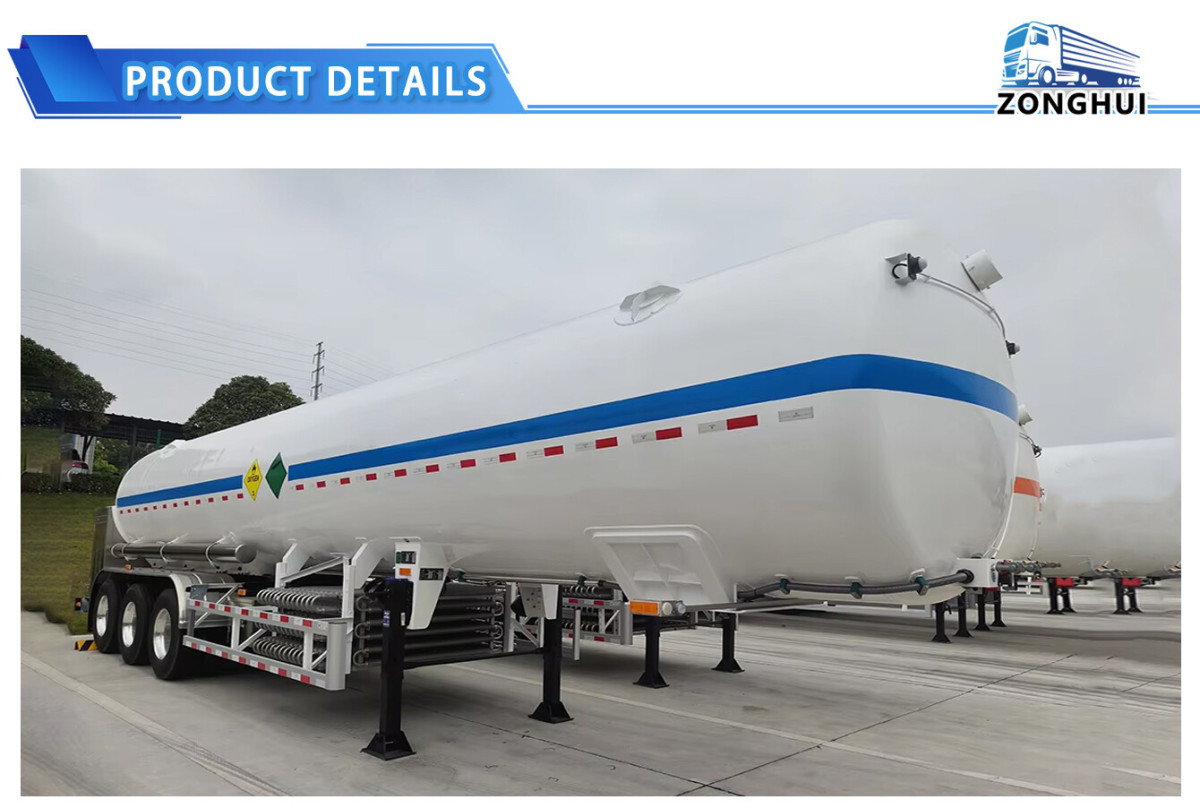

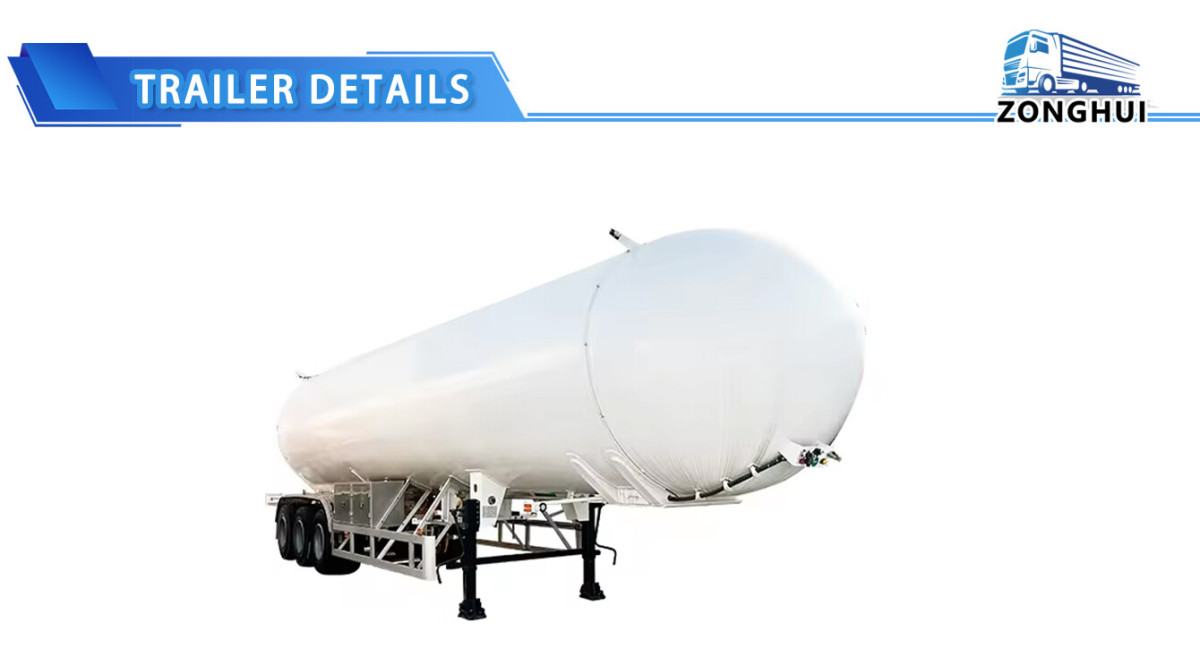

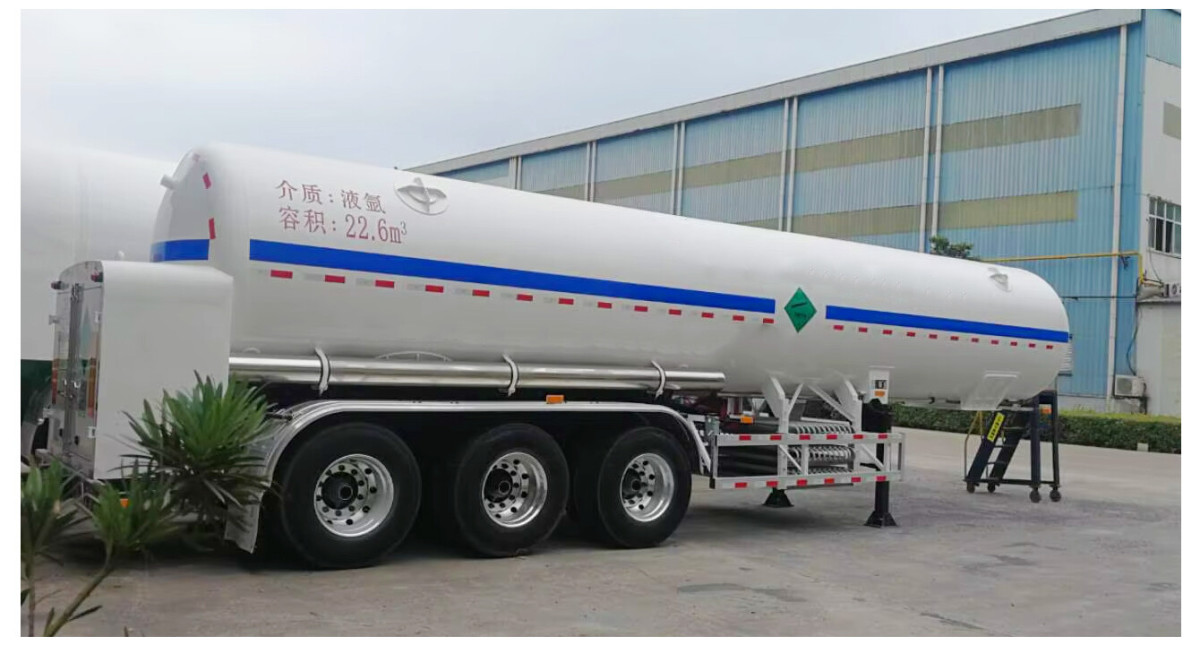

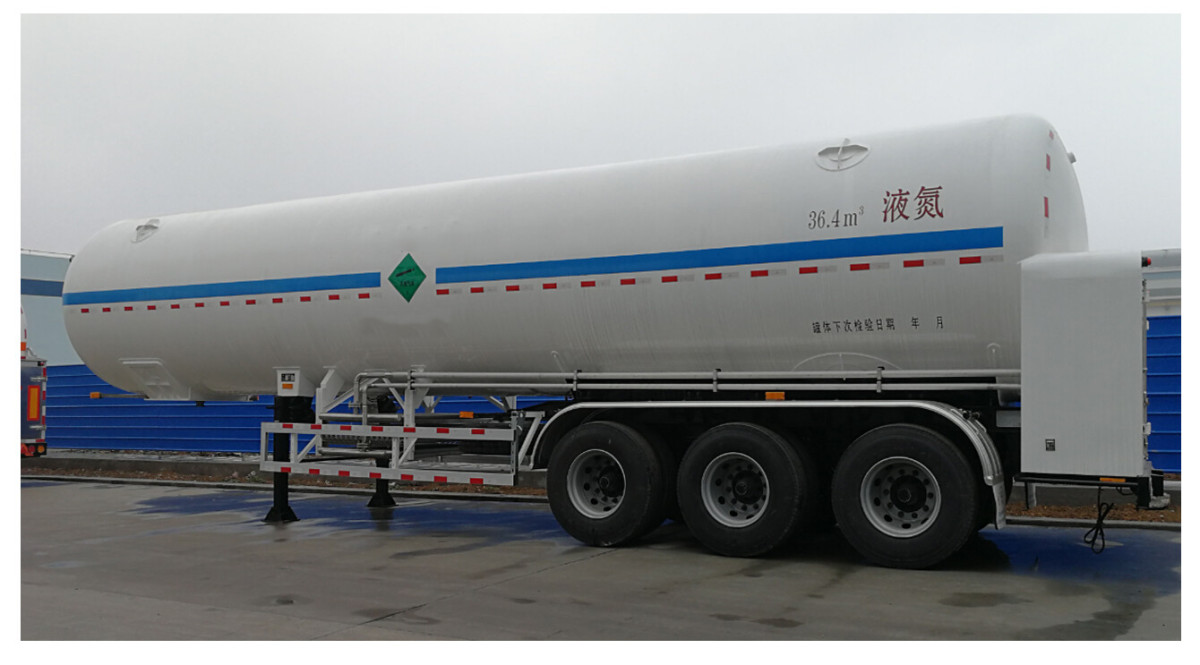

26000L 3 Axle LCO2 Tanker Semi-Trailer with Vacuum Insulation

Lead Time:45 working days
Product Origin:China
Shipping Port:Shanghai,Qingdao
Color:Option

PRODUCT DESCRIPTION

Specifications

Feature	Carry Liquid CO2
Dimension(LWH)	1200025003800mm
Overall Dimension(mm)	1200025003800mm
Material	Inner Tank：16MnDR(Q345R) Outer Skin：16MnDR(Q345R)
Heat Insulation Type	Vacuum Insulation
Curb Weight	13,200kgs
Capacity(kgs)	27,000Kg(26CBM)
Tare weight(kgs)	40,200kgs
Kingpin	The world-famous JOST brand bolt-in/welded type 3.5”/2”
Landing gear	JOST brand two-speed manual operation 19”
Tire size	11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
Rim size	8.2522.5、9.0022.5、11.75*22.5
Axle	Original BPW-12T/ FUWA-13T
Leafs spring	Germany type with 12pcs of leafs spring/ Fuwa brand with 10 pcs of leafs spring/ Airbag suspension
Brake system	One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
Design Pressure	2.28MPa
Pneumatic Test Pressure	2.63MPa
Air Test Pressure	2.28MPa
Design Temperature	-167℃
Liquid-phase Inlet&Outlet	DN50
Vapor-phase Inlet&Outlet	DN40
Pipe of the main safety Valve	2 x 2 safety valves set at 22.0 bar (319.0 PSI)
Pressure Gauge	2 pressure gauges(front and rear),equipped with isolation valve
Pump System	Difference Pressure: 3.5 bar Flow rate: Ca 20,000 Kg/ h Motor : 220/ 380 V / 50 Hz + 60 Hz / 5.5 kw
We can build the trailers according to customer’s design and requirement
